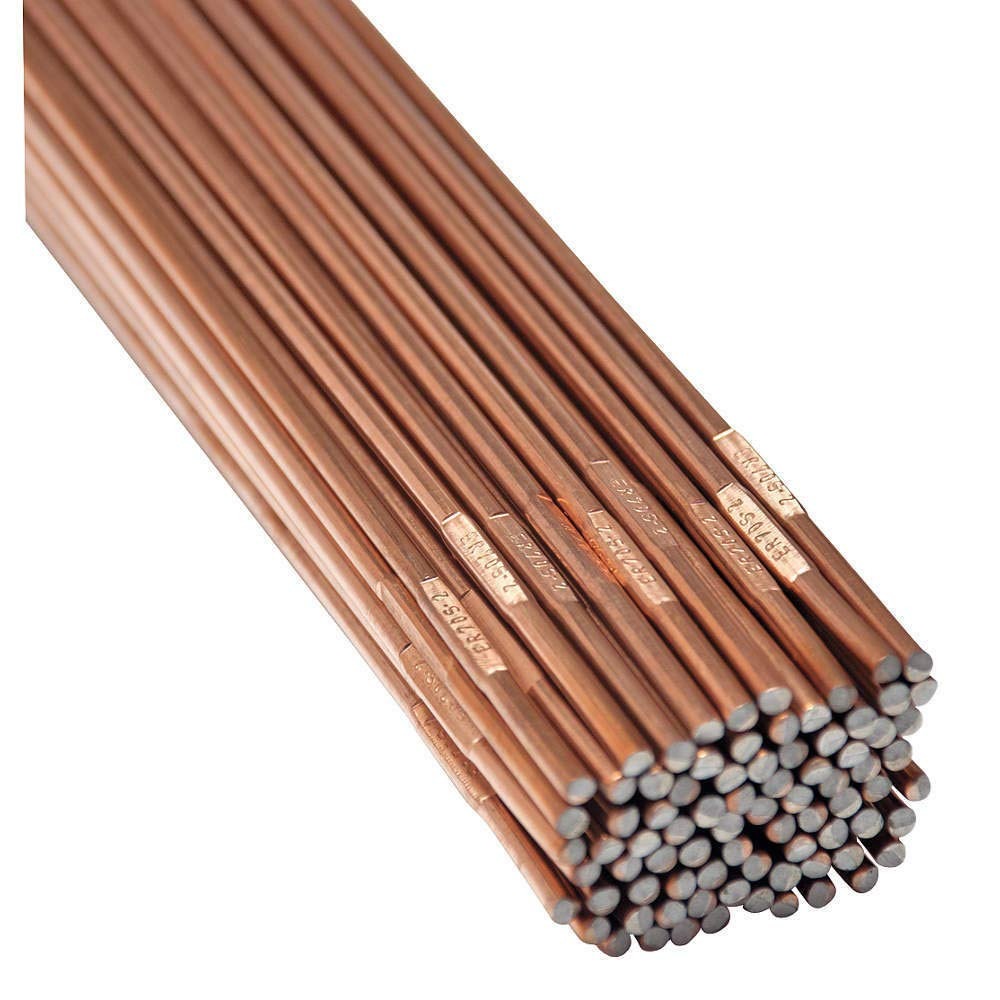

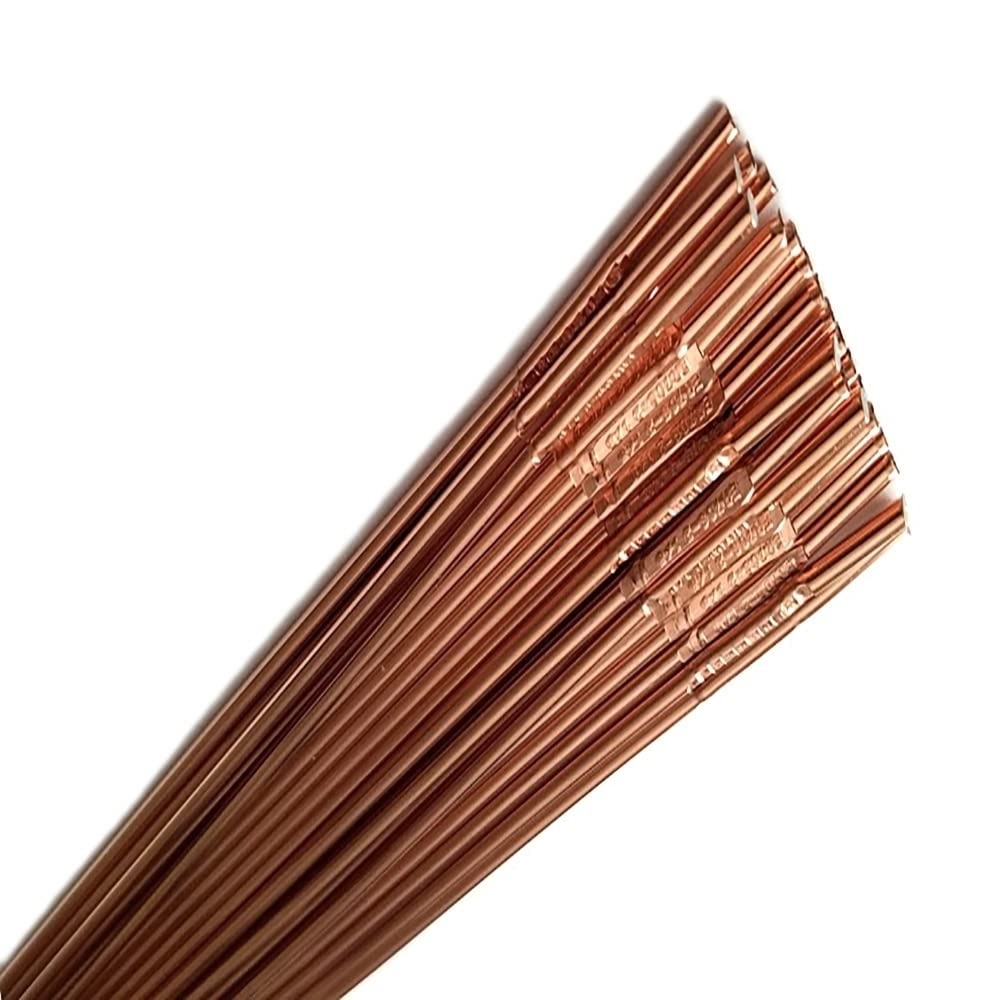

TIG Welding Rods ER70S-2 – High Strength Mild Steel Filler Rods

Industrial Grade TIG Welding Rods ER70S-2 – Buy Online at feelandeal.com

Achieve sound, porosity-free, and high-impact-resistant welds with premium ER70S-2 Mild Steel TIG Welding Filler Rods brought to you by feelandeal.com. Precision copper-coated for long shelf life and superior electrical conductivity, ER70S-2 is the premier choice for critical pipe welding, structural steel fabrication, and pressure vessel construction.

Key Features & Benefits:

• Triple Deoxidized Formula: Formulated with Aluminum, Titanium, and Zirconium to combine with oxygen, eliminating porosity and defects when welding on rusty, oily, or mill-scale surfaces.

• Radiography-Quality Welds: Produces clean, ductile, and defect-free weld joints that easily pass X-ray and ultrasonic testing in pressure applications.

• Smooth Arc & Copper Coating: High-purity copper coating prevents rust formation in storage, extends shelf life, and ensures smooth arc stability with low spatter.

• High Impact & Tensile Strength: Delivers strong mechanical properties suitable for low-temperature toughness and heavy-load structural joints.

• Wide Range of Applications: Essential for process piping, oil & gas pipelines, sheet metal work, structural repairs, boiler tubes, and automotive fabrications.

Technical Specifications:

• Product Name: TIG Welding Rods ER70S-2

• Store: feelandeal.com

• AWS Classification: AWS A5.18 / ASME SFA 5.18 ER70S-2

• Welding Process: GTAW (TIG Welding)

• Material Compatibility: Carbon Steel, Mild Steel, Low Alloy Steels

• Available Diameters: 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm

• Standard Rod Length: 1000 mm (1 Meter)

• Recommended Shielding Gas: 100% Pure Argon Gas

• Tensile Strength: Approx. 500 – 560 MPa

How to Use: Clean the joint area using a wire brush or grinder to remove heavy contaminants. Set your TIG welding machine to DCEN (Direct Current Electrode Negative) with a pure tungsten or 2% thoriated/lanthanated tungsten electrode. Use 100% Pure Argon as the shielding gas at a flow rate of 8–12 L/min. Feed the ER70S-2 filler rod smoothly into the weld puddle to maintain a uniform and aesthetic bead appearance.
